Application:
It can filter big PM in fluid, liquid, air or other corrosive media.It was installed on the pipeline to remove larger solid impurity in fluid, so that the machinery equipment (include compressor and pump etc.), instrument can work and operate normally, to steady technology and guarantee safety production.
Features:
To make sure it has great ability of anti-corrosion, the strainer is lined with PTFE. When the fluid enter into filter screen, the impurity was stopped, and the clean filtrate will be discharged from strainer exit. When it was cleaned, as longs as knock down screen, reload after handing, so the use and maintenance is very convinent.

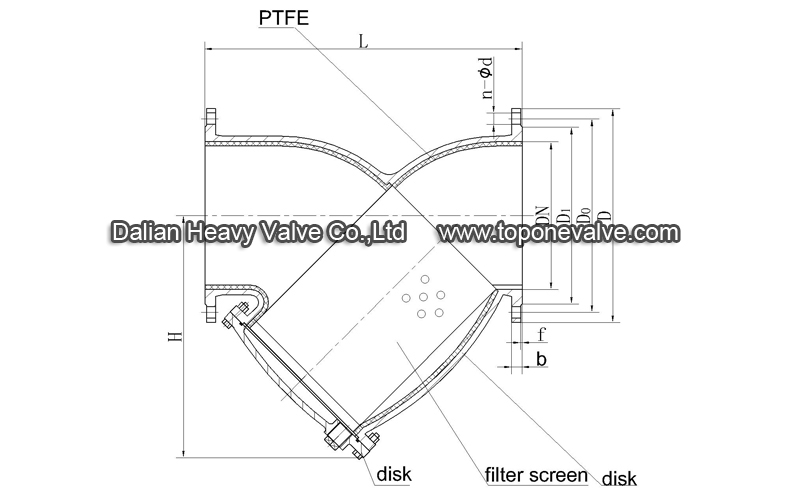

Structure diagram:
Nominal diameter（mm）：DN40～DN1000
Nominal pressure（Ｍpa）：0.1～2.5MPA
Suitable temperature：≤200℃
Suitable medium: corrosive medium
Filter screen: PTFE
Type of control : automatic.
Material:grey cast iron, ductile cast iron,alloy cast iron, carbon steel, stainless steel, alloy steel.
Standard: GB, BS, ASME, JIS, DIN, EN, ISO and other country, also can be produced according to user’s requirements.
