Application:

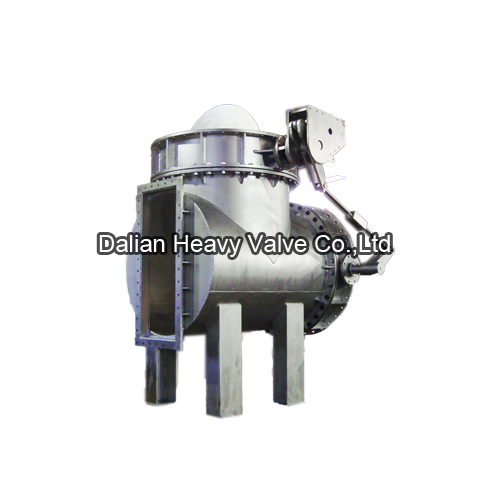

This valve is suitable for steel making system in steel metallurgy industry, used for flue gas discharge and gas recovery of BOF, and also can be used for ventilation, dedusting and environmental protection in iron ore sintering, smelting, cement, chemical, power generation and so on.can also be used for industrial water supply pipe network as a three-direction reversing.
Features:
This valve as a replacement of two valve and a pipe Tee to simplify the piping system. It occupies smaller space, cost less money and is easy to install and operate;
This valve takes two-steps action to open and close, so the frictional of between the sealing surfaces is reduced and the service life longer. Torque of closing and opening smaller and so the power consumption lower;
One of this valve take the place of two other valves, coefficient of resistance is far smaller than that of the two valves, and so this valve is an energy saving products.

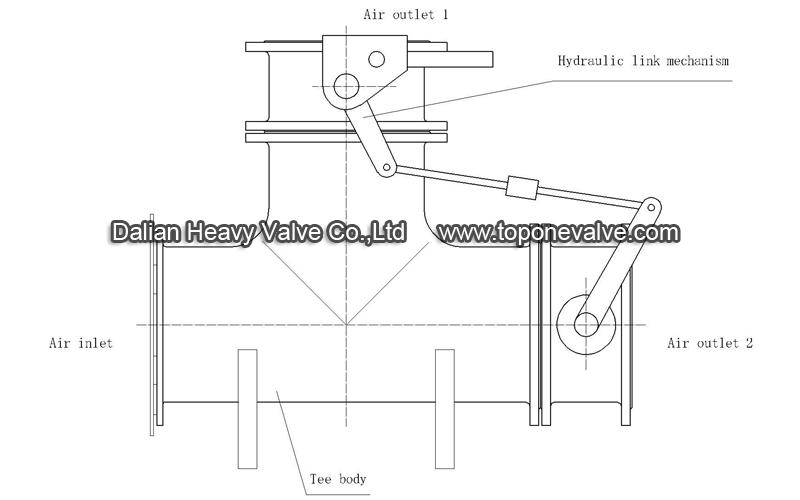

Structure diagram:
Nominal diameter（mm）：DN500～DN3000
Nominal pressure（Ｍpa）：0.05～1.6MPA
Suitable temperature：≤400℃
Suitable medium: gas, air with a little bit dust, air, water, etc.
Type of sealing : soft sealing and hard sealing.
Type of control : electric, pneumatic, hydraulic, etc.
Material:carbon steel ,cast iron,stainless steel, alloy steel.
Standard: GB, BS, ASME, JIS, DIN, EN, ISO and other country, also can be produced according to user’s requirements.
