Application:
Widely used in: chemical, petrochemical, petroleum, paper, mining, electricity, liquefied gas, food, pharmaceutical, water supply and drainage, municipal, mechanical equipment supporting, electronic industry, urban construction and other fields.
Features:
The flow controlling valve is multifunction valve which use high precision pilot method to control the flow. It is suitable for the pipe which sparge pipe needs to control the flow and pressure, keep the set flow unchanged, limit the over flow in a preset value, and reduce high pressure of upstream propriety, even upstream pressure of main valve changes, can not effect downstream flow of main valve. The valve change the normal principle of using orifice plate or machine to reduce flow area, using relative guide valve to minimize the loss of energy during throttling.

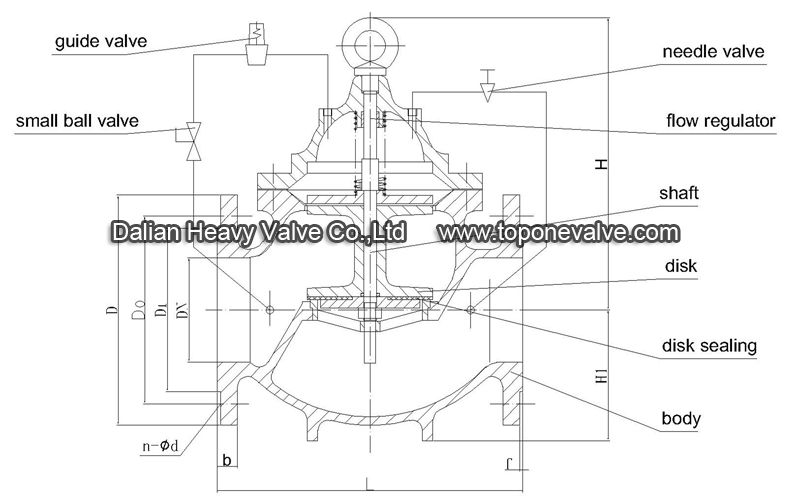

Structure diagram:
Nominal diameter（mm）：DN50～DN600
Nominal pressure（Ｍpa）：0.6～2.5MPA
Suitable temperature：≤120℃
Suitable medium: Water, sea water, stream, sewage, etc.
Type of sealing : soft sealing .
Type of control :automatic.
Material:grey cast iron, ductile cast iron, alloy cast iron, carbon steel ,stainless steel,alloy steel.
Standard: GB, BS, ASME, JIS, DIN, EN, ISO and other country, also can be produced according to user’s requirements.
