Application:
This valve is especially suitable for the conditions such as river that has much sand, sea water, sewage and other similar medium. And it will used for adjustable and closing.
Features:
Rolling bearing is provided at the two sides of the shaft with small opening and closing torque. Rubber ribs and O ring sealings are applied at the ends of the shaft to prevent the sand and slud from coming. Also oil injection hole is provided to inject oil and discharging port is provided to watch the shaft ending sealing.

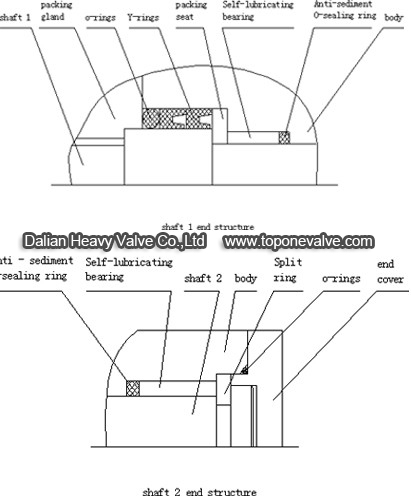

Schematic diagram:
Nominal diameter（mm）：DN200～DN5000
Nominal Pressure（Mpa）：0.1～4.0MPA
Suitable temperature：≤80℃
Suitable medium: water with much sand, sea water, sewage, etc.
Type of sealing : soft sealing..
Type of control : manual, electric, pneumatic, hydraulic, etc.
Material of main part: grey cast iron, ductile cast iron, alloy cast iron, carbon steel, stainless steel, alloy steel,etc.
Standard: GB, BS, ASME, JIS, DIN, EN, ISO and other country, also can be produced according to user’s requirements.
