Why Choose Us?
★ Fast& Professional Reply.
★ Great Quality!! Quick Delivery Time!! Amazing After-sales Service!!
★ Two Factories; Occupying Area 20000 Sq.m.; Technicist beyond 80.
★ Welcome OEM& ODM.
★ Export more than 60 countries, widely used in power stations, thermal power station, water works, water works, sewage disposal plants, iron and steel companies and other industries.
Application:
This butterfly valve is suitable to be used in industrial pipeline as both-direction open-closing and regulating equipments. The regulating equipments. The regulating scope is from 40°to 90°. Please point out the mounting direction when purchasing this valve.
Features:
This valve can be freely flexible axially so as to offset the flexibility of pipeline system and error of installation, this can take the place of a butterfly valve and a flexible joint, so easy in installation, disassemble and maintaining.

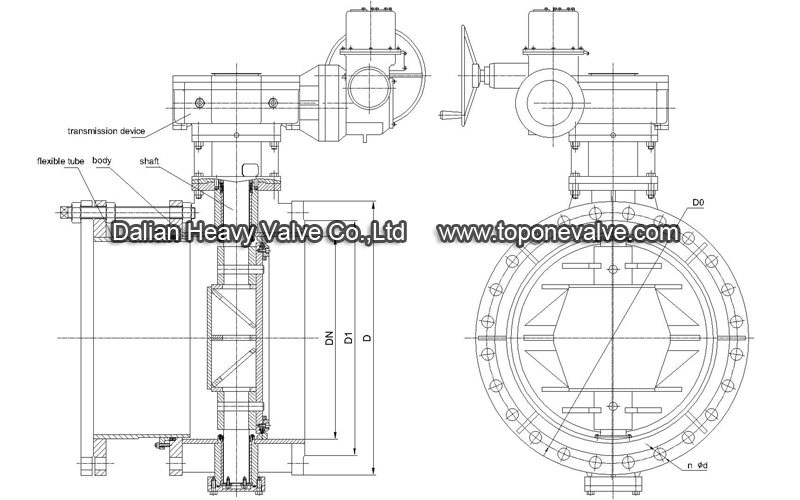

Structure diagram:
Nominal diameter（mm）：DN200～DN5000
Nominal pressure（Mpa）：0.1～2.5MPA
Suitable temperature：≤80℃
Suitable medium: water, sea water, sewage, etc.
Type of sealing : soft sealing, hard sealing.
Type of control : manual, electric, pneumatic, hydraulic, etc.
Material of main part: alloy cast iron, carbon steel, stainless steel, etc.
Standard: GB, BS, ASME, JIS, DIN, EN, ISO and other country, also can be produced according to user’s requirements.
