Application:
It is widely used in water supply and drainage, circulating water, HVAC, fire, paper, pharmaceutical, petrochemical, ships, pumps, compressors, fans and other piping systems.
This product can reduce vibration and noise, and can compensate for the thermal expansion and shrinkage caused by temperature change.
Features:
It is composed of inner rubber layer, nylon cord fabric reinforced, rubber ball with outer rubber layer and loose sleeve metal flange.It has the characteristics of high pressure resistance, good elasticity, large displacement, balanced pipe deviation, absorbing vibration, low noise effect and convenient installation, and can be used for conveying -15℃~120℃ air, compressed air, water, seawater, oil, acid and alkali etc.The special type is used for conveying -30℃~250℃ above medium or oil, concentrated acid and solid alkali, solid-state material.

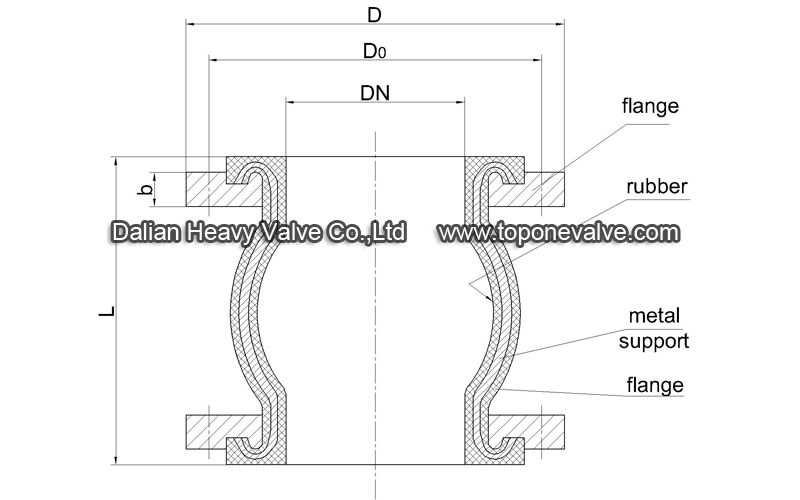

Structure diagram:
Nominal diameter（mm）：DN32～DN3600
Nominal pressure（Ｍpa）：0.1～2.5MPA
Suitable temperature：≤150℃
Suitable medium: water, sea water, air, hot water, acid-base, oil, etc.
Material of main part: Rubber.
Standard: GB, BS, ASME, JIS, DIN, EN, ISO and other country, also can be produced according to user’s requirements.
