Application:
This valve is widely used in gas, poisonous, harmful, flammable gas and other media, as a reliable cut-off device.It is also suitable to make the blind plate of the pipe terminal to shorten the overhaul time or to connect the new piping system conveniently.
Features:
This valve is composed of a left-right valve body, a fan-shaped valve plate and a stainless steel corrugated pipe. Drive mode manual, electric, pneumatic and hydrodynamic;Another design has clamping device, reliable use, good sealing performance, good self-locking, long service life.

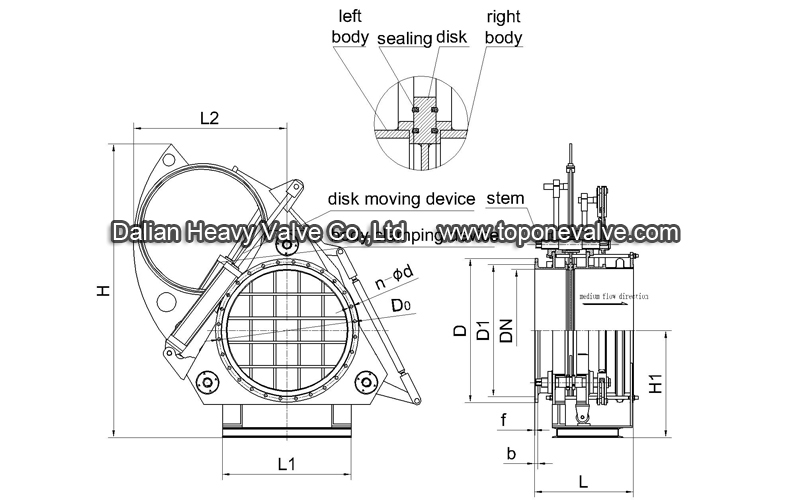

Structure diagram:
Nominal diameter（mm）：DN200～DN2400
Nominal pressure（Ｍpa）：≤0.25MPA
Suitable temperature：≤250℃
Suitable medium:blast furnace gas, smoke, etc.
Type of sealing : soft sealing.
Type of control : manual, electric, pneumatic, hydraulic,etc.
Material of main part: carbon steel, stainless steel ,etc.
Material:grey cast iron, ductile cast iron,alloy cast iron, carbon steel,stainless steel, alloy steel.
Standard: GB, BS, ASME, JIS, DIN, EN, ISO and other country, also can be produced according to user’s requirements.
