Why Choose Us?
★ Fast& Professional Reply.
★ Great Quality!! Quick Delivery Time!! Amazing After-sales Service!!
★ Two Factories; Occupying Area 20000 Sq.m.; Technicist beyond 80.
★ Welcome OEM& ODM.
★ Export more than 60 countries, widely used in power stations, thermal power station, water works, water works, sewage disposal plants, iron and steel companies and other industries.
Application:
The series of valves are applied to the pipeline which medium is steam, smoke or air, as close-open equipment, they can also be regulating between 40°to 90 °.
Features:
This valve has simple structure, it is single eccentric type, reliable sealing, low manufacturing cost and long service life.

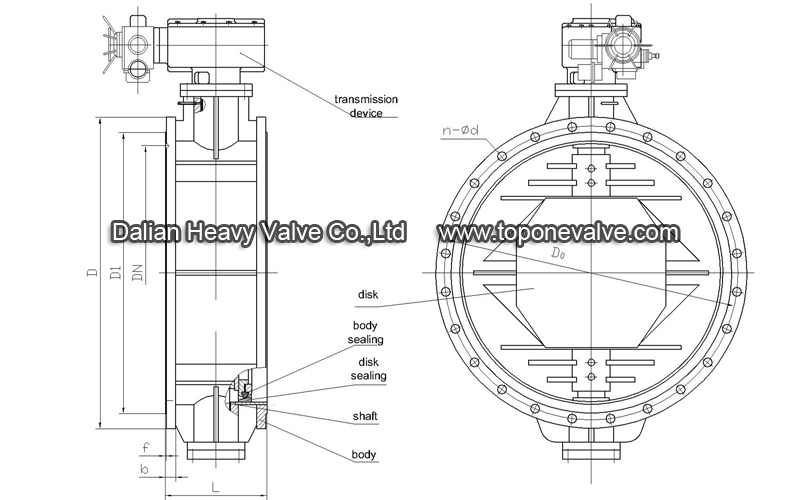

Structure diagram:
Nominal diameter（mm）：DN200～DN5000
Nominal pressure（Ｍpa）：0.1～0.6MPA
Suitable temperature：≤200℃
Suitable medium: gas, smoke, etc.
Type of sealing : soft sealing.
Type of control : manual, electric, pneumatic, etc.
Material of main part: carbon steel, stainless steel ,etc.
Material:grey cast iron, ductile cast iron,alloy cast iron, carbon steel,stainless steel, alloy steel.
Standard: GB, BS, ASME, JIS, DIN, EN, ISO and other country, also can be produced according to user’s requirements.
